Laboratory Research and Industrial Applications In laboratory settings—especially for lithium-ion battery R&D, chemical synthesis, and material science—consistent, precise mixing is a cornerstone of reliable experimental results and high-quality product development. Xiamen AOT Battery Equipment Technology Co., Ltd., a leading manufacturer of battery-related equipment since 2006, has engineered the AOT-OS10 Pro Overhead Stirrer Laboratory Mixer to address the unique demands of these fields. This compact yet powerful device integrates advanced features, robust performance, and user-friendly design, making it an indispensable tool for researchers and engineers working on electrolyte formulation, electrode slurry preparation, and other viscosity-sensitive mixing tasks.

Core Design and Functional Advantages

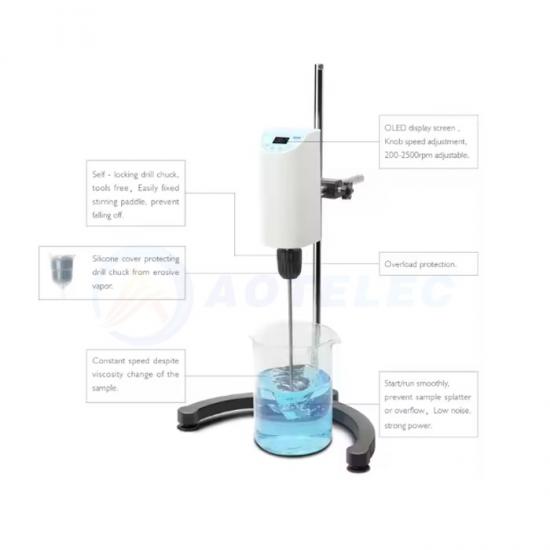

The AOT-OS10 Pro stands out for its thoughtful design that prioritizes precision, durability, and ease of use—key pain points for laboratory professionals. Its standout features are tailored to handle the dynamic conditions of battery and chemical mixing:

1. Intuitive Speed Control and Real-Time Monitoring

Equipped with an OLED display screen, the stirrer provides clear, high-visibility readouts of rotational speed (resolution: ±1 RPM), ensuring operators can track and adjust parameters with accuracy. The speed range of 200–2500 RPM, adjustable via a responsive knob in 50-RPM increments, accommodates diverse mixing needs—from gentle stirring of low-viscosity electrolytes to high-speed blending of thick electrode slurries. Unlike basic stirrers that fluctuate speed with viscosity changes, the AOT-OS10 Pro maintains constant speed stability even as sample viscosity shifts (up to a maximum of 10,000 mPas). This is critical for battery R&D, where inconsistent mixing of electrode slurries (e.g., lithium nickel manganese cobalt oxide, NMC, with binders and solvents) can lead to uneven coating, reduced battery capacity, and poor cycle life.

2. Tool-Free, Secure Stirring Paddle Installation

The stirrer features a self-locking drill chuck with a clamping range of 0.5–10 mm, allowing quick, tool-free attachment of various stirring paddles (e.g., propeller, anchor, or turbine types) to suit different mixing tasks. This design eliminates the need for specialized tools, reducing setup time and minimizing the risk of paddle slippage or detachment during high-speed operation. A silicone cover further protects the drill chuck from corrosive vapors—common in electrolyte mixing (where solvents like N-methyl-2-pyrrolidone, NMP, are used)—extending the device’s lifespan and maintaining performance over time.

3. Overload Protection and Smooth Operation

Safety and reliability are embedded in the AOT-OS10 Pro’s design. An automatic overload protection system triggers an immediate stop if the stirrer encounters excessive resistance (e.g., a blocked paddle or overly viscous sample), preventing motor damage and ensuring operator safety. The stirrer also boasts a DC brush motor that delivers 20 N·cm of maximum torque—powerful enough to handle thick slurries—while maintaining low noise levels and smooth startup. This "soft start" feature prevents sample splatter or overflow, a common issue with abrupt-start stirrers that can waste precious materials (e.g., expensive lithium-based electrolytes) and compromise experiment integrity.

Applications: Driving Efficiency in Battery R&D and Beyond

While the AOT-OS10 Pro is a multi-purpose laboratory tool, its design aligns perfectly with the needs of lithium-ion battery research and small-scale production:

1. Electrolyte Formulation

Battery electrolytes—composed of lithium salts (e.g., LiPF₆), organic solvents, and additives—require thorough mixing to ensure uniform ion distribution. The AOT-OS10 Pro’s constant speed control prevents sedimentation of salts and ensures additive dispersion, critical for enhancing battery conductivity and cycle stability. Its low-noise operation also makes it suitable for fume hood environments, where electrolyte mixing often occurs to contain volatile solvents.

2. Electrode Slurry Preparation

Electrode slurries (cathode or anode) consist of active materials, conductive additives (e.g., carbon black), binders, and solvents. The stirrer’s high torque and viscosity tolerance handle the thick, heterogeneous nature of these slurries, preventing agglomeration of conductive particles. For example, when mixing NMC cathode slurries, the AOT-OS10 Pro maintains 1,500 RPM even as viscosity increases, ensuring the slurry coats uniformly onto current collectors—directly improving electrode performance.

3. General Laboratory Mixing

Beyond batteries, the stirrer supports tasks like suspension preparation (e.g., nanoparticle dispersions for battery coatings) and chemical reaction stirring (e.g., synthesis of battery binders). Its compatibility with various container types (beakers, reaction vessels) and paddle designs adds to its versatility, reducing the need for multiple specialized mixers.

The AOT-OS10 Pro Overhead Stirrer Laboratory Mixer bridges the gap between precision and practicality, making it an essential tool for battery laboratories and chemical research facilities. Its constant speed control, durable design, and user-friendly features address the unique challenges of mixing viscosity-sensitive materials, while its compact size and global compatibility suit diverse laboratory environments. Backed by AOT’s expertise in battery equipment and responsive customer support, the OS10 Pro is more than a mixer—it is a reliable partner in advancing research and ensuring consistent results in the fast-evolving field of energy storage and material science.

For researchers and manufacturers seeking to elevate their mixing processes, the AOT-OS10 Pro delivers the performance, durability, and flexibility needed to turn innovative ideas into tangible, high-quality products.
